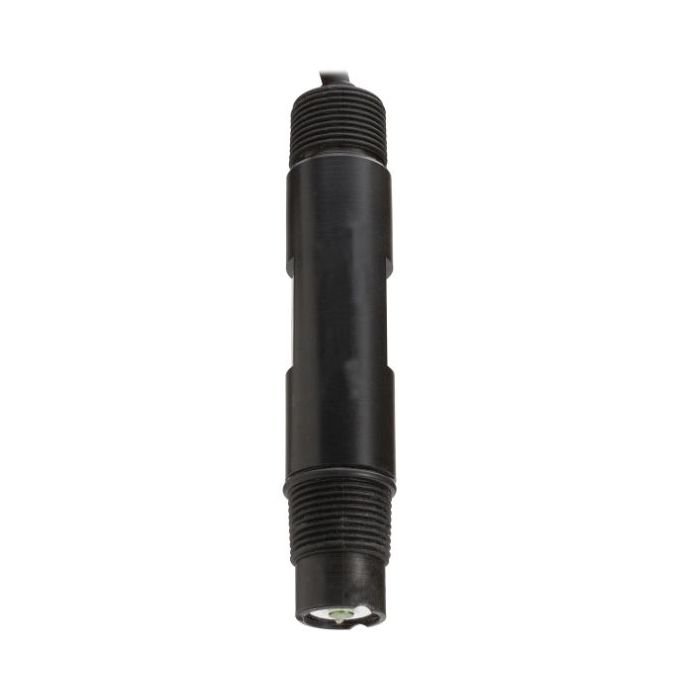

AmpHel® Flat-tip pH Electrode - General Purpose, 15m Cable, Pt100 Temperature Sensor, BNC + Lead Connector

Name: AmpHel® Flat-tip pH Electrode - General Purpose, 15m Cable, Pt100 Temperature Sensor, BNC + Lead Connector
SKU: HI6101415
Price: 539.00 EUR

539,00 €

Na lageru

This amplified pH electrode is designed for industrial applications with features such as a PTFE junction, Pt100 temperature sensor, and PVDF body. With it's durable design, you can count on this electrode to stand up to your process environment.

Flat-tip pH electrode.
General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.
Built for everyday, demanding use in industrial applications.

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Opis

Flat tipped pH electrode

Virtually eliminates deposits that can foul the electrode, significantly reducing necessary maintenance.

PTFE junction

The electrode has a unique clog resistant junction that enhances both probe life and accuracy.

PVDF body

PVDF offers characterized by high thermal stability and excellent chemical resistance.

BNC + lead connector

Allows for quick and easy connection to any pH/ORP meter or transmitter.

General purpose glass formulation

General purpose glass provides the best response over the entire pH range and can be used for a wide range of applications.

Built-in Pt100 temperature sensor

Ensures fast, accurately compensated readings even during sudden temperature fluctuations.

Specifications

Specification Name	Detail
SKU	HI6101415
Range	pH: 0-13
Tip Shape	Flat
Body	PVDF
Junction	Double, PTFE
Glass Type	GP (-5 to 80°C)
Electrolyte	Polymer
Matching Pin	Yes
Amplifier	No
Temperature Sensor	Yes
Temperature Sensor Type	Pt100
Max Pressure	6 bar (87 psi)
Connector	BNC + lead
Cable	15m
Warranty	6 months
